Synapse Chat Features

Introduction

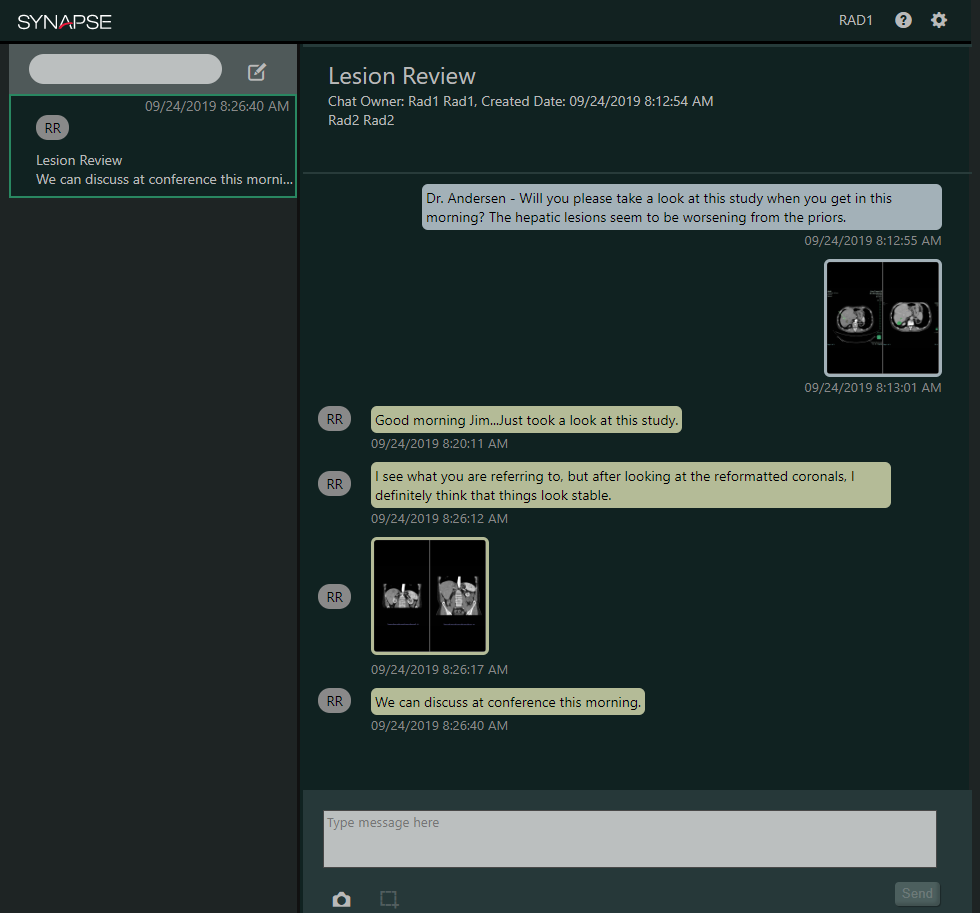

Synapse Chat provides the ability for Synapse users to communicate with one another within the Synapse application. You can initiate a chat with another active user or users, or even start a conversation with someone who is offline, but can receive the chat once they log on. See Synapse Chat Overview.

Synapse saves your chat window size and position. If you log out and then back into the same workstation, any settings that you changed will persist. However, if you log into another workstation, the default view displays.

Feature

Icon

Description

Search Bar

Use the Search bar in the Synapse Chat window to easily locate a particular thread in a Synapse Chat session. You can search your active Synapse Chat sessions by chat title or by the names of other chat session participants. See Searching for Synapse Chat Session Information

Compose

Click Synapse Chat Compose, located next to the Search bar, to initiate a new chat session.

See Initiating a Synapse Chat Session

Session Information



An established Synapse Chat session displays the chat title, the creation date and time, along with the participant list.

See Opening a Synapse Chat Session

When you first initiate a Synapse Chat session, the Title text field displays the creation date and time.

Add participants by clicking into the Participants field.

See Initiating a Synapse Chat Session



Most Recent Thread

A green box highlights the most recent chat thread. Click the most recent chat thread at the top of the chat window to display the contents on the right side of the window.

See Opening a Synapse Chat Session

Delete Icon

Hover over most any chat thread to view the Synapse Chat delete icon.

See Deleting a Synapse Chat Session

Text Field

Use the text field to add your comments to a chat session.

See Opening a Synapse Chat Session

Camera

Click Synapse Chat Camera (in the text field area) while working in the Viewer to add snapshots to your current Viewer chat session.

See Adding Snapshots to a Synapse Chat Session

Screen Capture

Click Synapse Chat Screen Capture (in the text field area) to add screen captures to your chat session.
See Adding Screen Captures to a Synapse Chat Session
